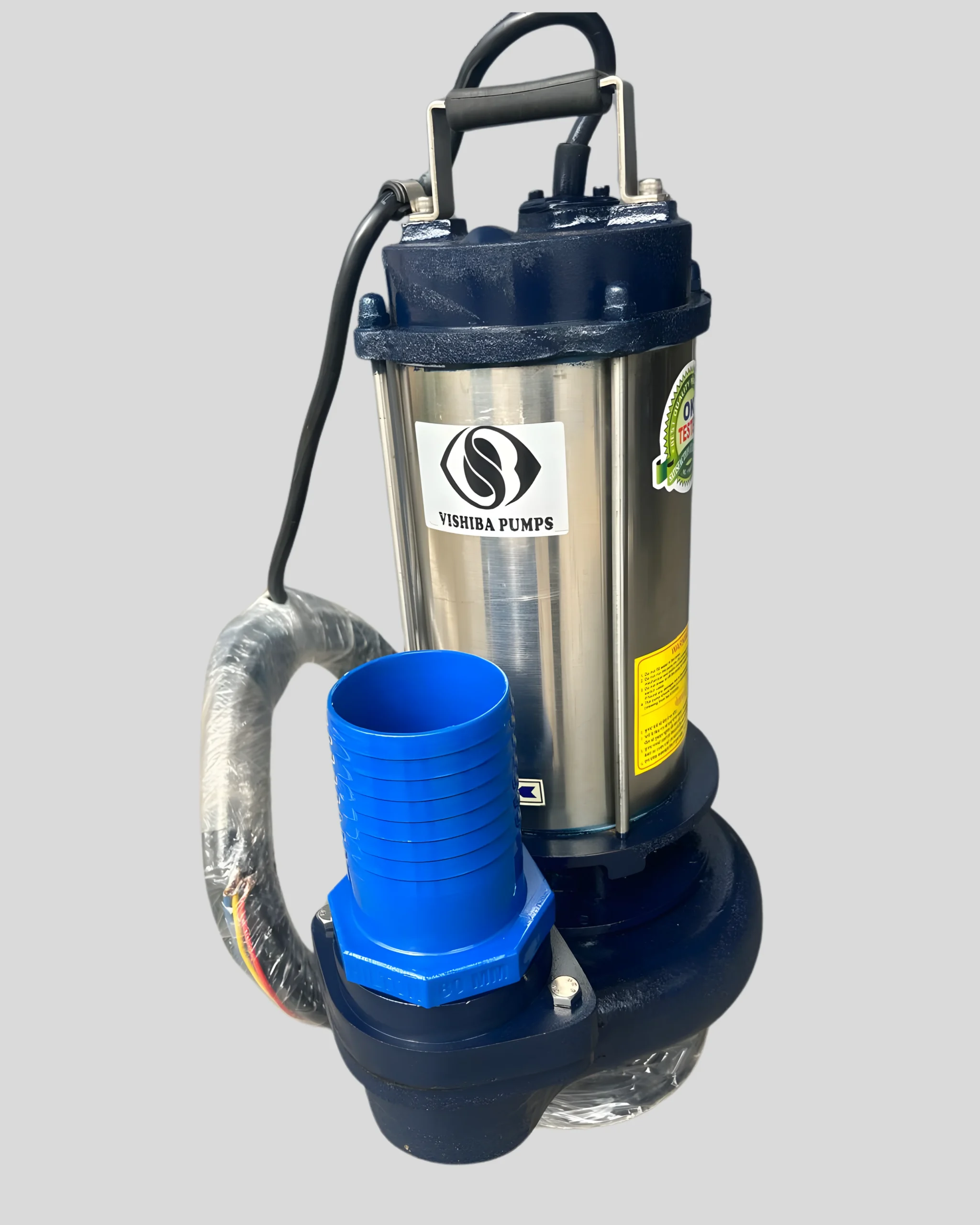

VSS Series – Stainless Steel Submersible Pumps

VSS Series – Stainless Steel Submersible Pumps

Pumping Salt with Sea water or any kind of corrosive liquids requires very robust & reliable submersible pumps. For such critical applications, it’s just not enough for the product to be robust in design, but it is equally important to have a high reliability material which can serve well in these applications in the long run. VISHIBA PUMPS supplying reliable Submersible pumps handling Sea water & other corrosive liquids, for this we have provided pumps in various grades of SS304, SS316, SS316L & Duplex SS. These Pumps ideal for Pumping Sea Water, corrosive liquids & liquids with Low PH, Desalination Projects, Reverse Osmosis, Pumping Effluents, Wastes, and Slurries with Low PH, Chemical Handling Plants & many more similar applications.

Features

  • Impeller : Special corrosion / erosion resistant impellers to suit specific applications. Impeller to suit Solids passage up to 100mm.
  • Motor : Highly efficient motor with built -in protection against temperature rise. Motor capable to withstand wide voltage fluctuations.
  • Shaft : Extra heavy duty SS Shaft.
  • Mechanical Seals : Specially designed Dual Mechanical seals with unique rubber material are fitted in independent seal chambers.
  • Bearing : Heavy duty ball bearing used at top and bottom ends to balance adverse load.
  • Cable Sealing : Special leak proof cable sealing arrangement, to avoid ingress of water through cable.no need to open motor for changing cable.
Category:
MODEL OUTPUT (KW/HP) PHASE ROTATION (RPM) FLOW (m³/H) HEAD (M) OUTLET (MM)
VSS50-2-0.75SF 0.75/1 SINGLE 2900 10 10 50
VSS50-2-0.75 0.75/1 THREE 2900 10 10 50
VSS50-2-1.1 1.1/1.5 THREE 2900 7 15 50
VSS65-2-1.1 1.1/1.5 THREE 2900 15 9 65
VSS50-2-1.5 1.5/2 THREE 2900 12 15 50
VSS65-2-1.5 1.5/2 THREE 2900 25 10 65
VSS50-2-2.2 2.2/3 THREE 2900 9 22 50
VSS65-2-2.2 2.2/3 THREE 2900 20 18 65
VSS80-2-2.2 2.2/3 THREE 2900 45 9 80
VSS50-2-3.7 3.7/5 THREE 2900 15 32 50
VSS65-2-3.7 3.7/5 THREE 2900 25 26 65
VSS80-2-3.7 3.7/5 THREE 2900 30 26 80
VSS100-2-3.7 3.7/5 THREE 2900 50 10 100
VSS80-2-5.5 5.5/7.5 THREE 2900 40 22 80
VSS100-2-5.5 5.5/7.5 THREE 2900 70 10 100
VSS150-2-5.5 5.5/7.5 THREE 2900 100 7 150
VSS80-2-7.5 7.5/10 THREE 2900 45 22 80
VSS100-2-7.5 7.5/10 THREE 2900 80 15 100
VSS150-2-7.5 7.5/10 THREE 2900 100 10 150
